Why is there a forklift safety indicator projection?

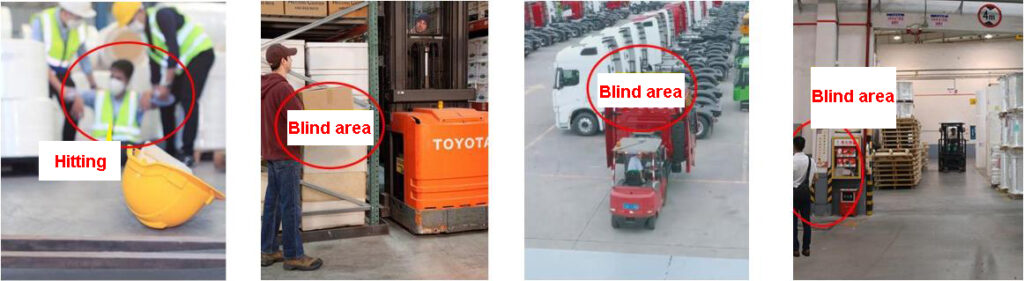

The cost of a forklift accident can reach up to USD 200000. Frequent cross operation between people and vehicles in the factory area, complex working environment for vehicles, limited visibility for drivers, and susceptibility to fatigue, blind spots in the field of view, reversing, and turning, causing the occurrence of malignant accidents such as non rubbing, collision, crushing, and collision, resulting in serious consequences such as work stoppage, extensive compensation, and leadership accountability

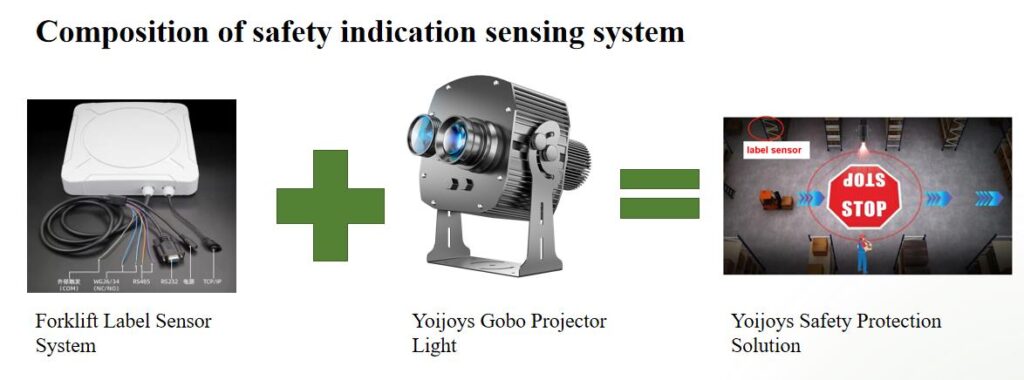

1. Forklift Label Sensor System
Output power: 0-30dBm (adjustable)
Antenna gain: 8dBi
Reading distance: 0-8 meters, sensing angle 60 ° -90 °
Communication interface: RS232/485 TCP/IP ,WG26/34,4G
Polarization method: circular polarization
Work Agreement: I5018000-6C
Operating Frequency: 860~868MHz 902~928MHz
Working mode: active/passive/trigger mode
Working voltage: DC 9-12V
Buzzer and LED light working prompts:
Working temperature: -40 ° C~+50 ° C
Product Material: ABS
Product Power Consumption: 6W

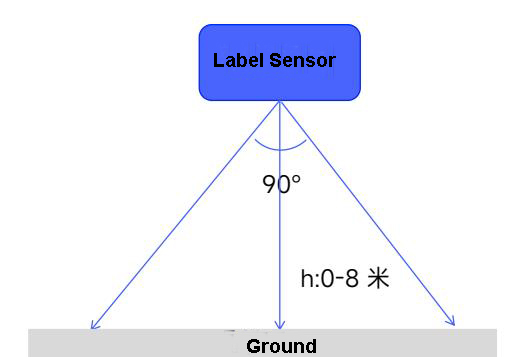

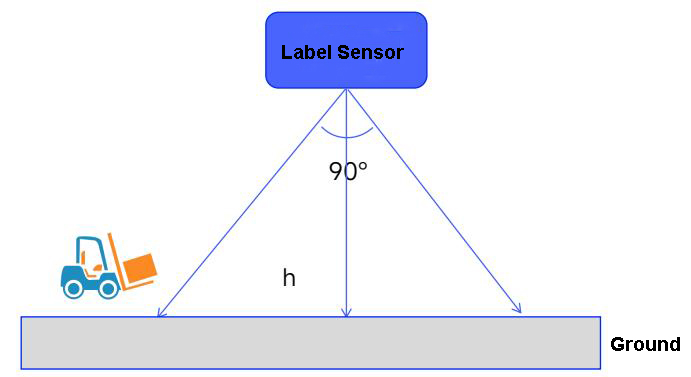

The sensing range of the product is shown in the figure:

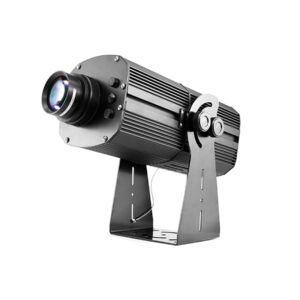

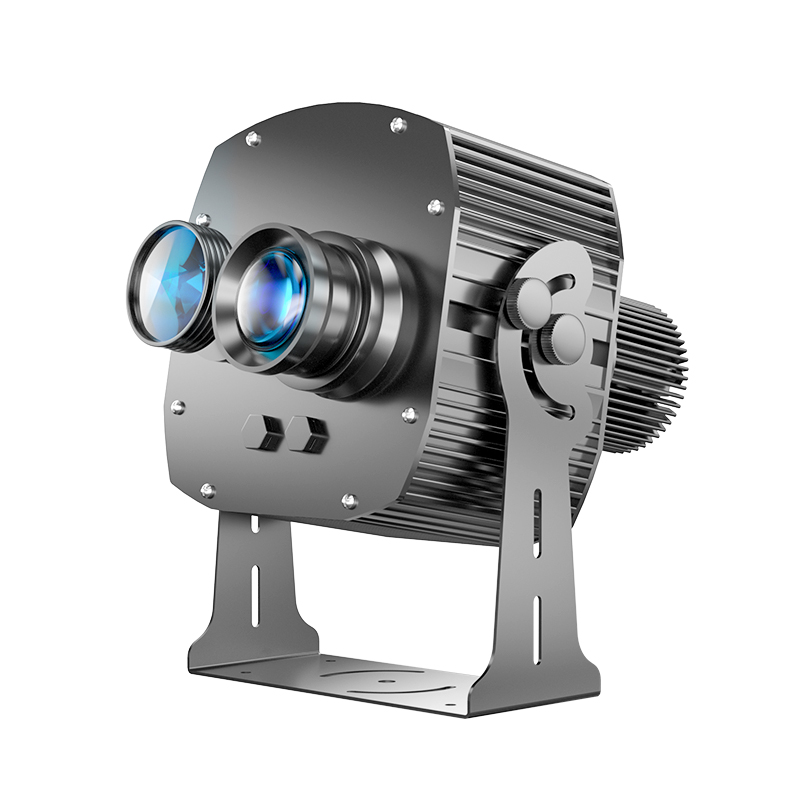

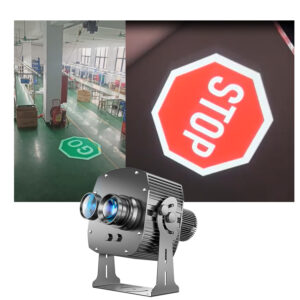

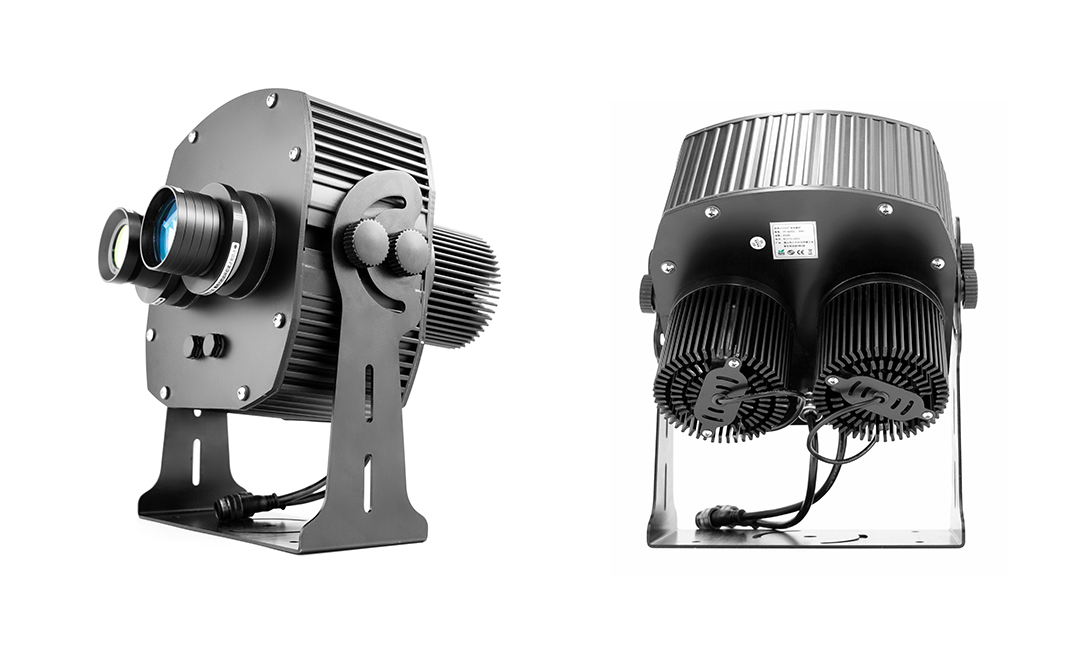

2. Yoijoys Gobo Projector Light
According to the installation height, can choose 100W to 300W gobo projector light. Following is the specification of 300W:
Power: 300W Light Source: OSRAM
LED:3000-9000k (Default 8500K white)
Lumen: 33000lm color rendering index: 85Ra
Waterproof: IP65 waterproof
Rotation or not: Built-in button to control rotation/rest
Shell material: aluminum alloy
Imaging lens: HD double-coated lens
Power: MEANWELL power supply
Heat dissipation system: air-cooled aluminum + waterproof fan heat dissipation
Projection distance: Dim 2-26 meters at night
Principle of safety indication induction projection system

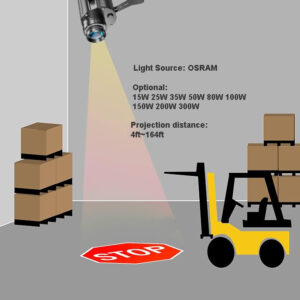

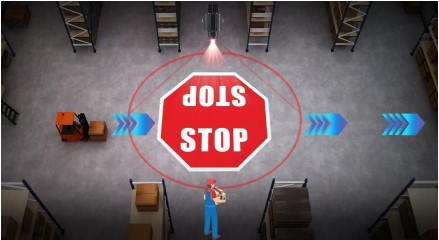

1. Induction principle: When the forklift enters the label sensor induction range, the projection system switches to “Stop” Pattern, The “Stop” pattern is used to remind pedestrians not to pass.

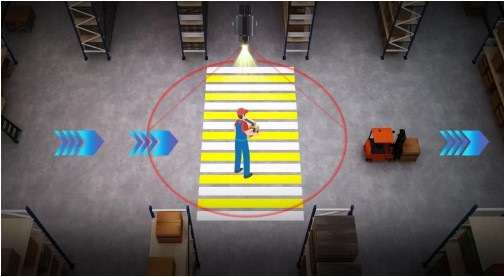

2. Induction principle: When the forklift leaves the label sensor induction range, the projection system switches to “zebra crossing” Pattern, The “zebra crossing” pattern is used to remind pedestrians to pass.
